Lotis 82 GU10 (GU10 Exclue)

Description

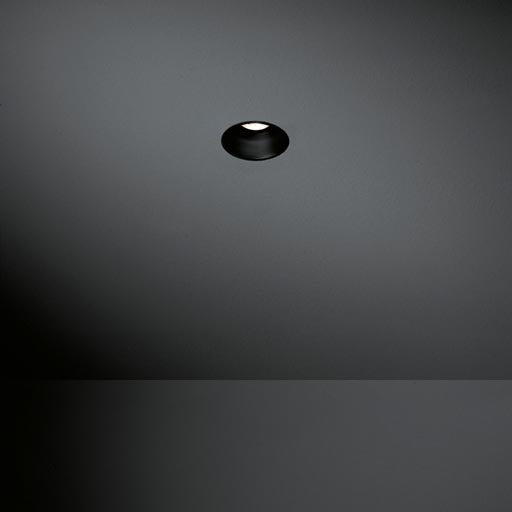

Cone shaped deep recessed luminaire for use with optional dedicated LED module or used with (integrated) GU10 LED lamps. IP20 rated, for indoor use only. Only suitable for ceiling application. The luminaire consists of 3 main components: the cone shaped body, the lampring and a GU10 socket with a connection box (only for GU10 version). The GU10 version comes in 3 variants: no lamp included, with an included LED lamp 2700K medium beam that can be controlled via connected technology, or with an included LED lamp which is tunable white (2200-6500K) also to be controlled via standard connected technology platform. No visible screws or wiring after installation. The luminaire can be combined with installation accessories such as a frame for use with plaster finish and/or sheet metal boxes for use in concrete or structural ceilings.

Materials

• Aluminium body available in various finishes:

     • finished in fine-textured scratch-resistant powder coating matt black or matt white

      • finished in matt scratch-resistant wet paint, grinded anodization look: bronze, silver bronze, champagne, gold or black

• Leaf springs in stainless steel

• Aluminium lampring, finished in the same colours as the aluminium body

• Galvanised steelplate bracket that holds the electrical connection box (only for GU10 version)

Technical characteristics

• Dimensions: ø 82 x 126 mm (H) for the GU10 version, ø 82 x 48 mm (H) for the version to be used with optional LED module

• Colour temperature: 2700K or tunable white (2200-6500K)

• Power consumption: 5.2W (2700K), 5W (tunable white)

• Class 2 (GU10), Class 3 (version with optional dedicated LED module)

• Use: indoor, dry locations, IP20

• Glow wire rating: 960°C

Installation

Recess hole dimension ø76mm. Version for use with optional LED module: Electrical connection to LED driver by means of two leads (red and black, approx. 300mm each), and two 2-pole splicing connectors for wire sections from 0.2 to 4mm² - 24 to 12 AWG (included) GU10 version: electrical connection to the mains via a 2-pole connector with screw terminals for wire sections up to 6mm² - 10 AWG. The connector is put in a plastic casing with a cover to keep Class 2 construction. Recessed mounting in ceiling only.

Accessories

Sheetmetal box for use in concrete or structural ceiling. Galvanised perforated steelplate for use in ceilings which need plaster finish.
